PLD800 type two-bin concrete batching machine, concrete mixing station, concrete batching machine, automatic batching machine.

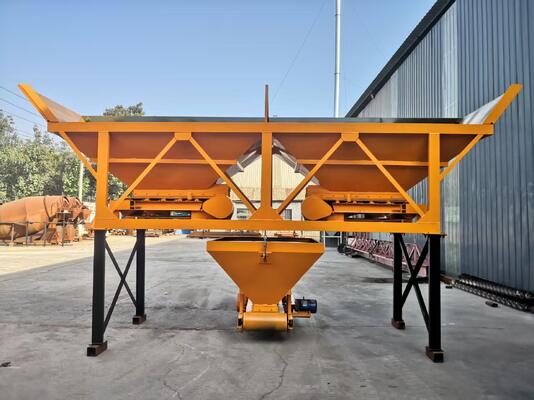

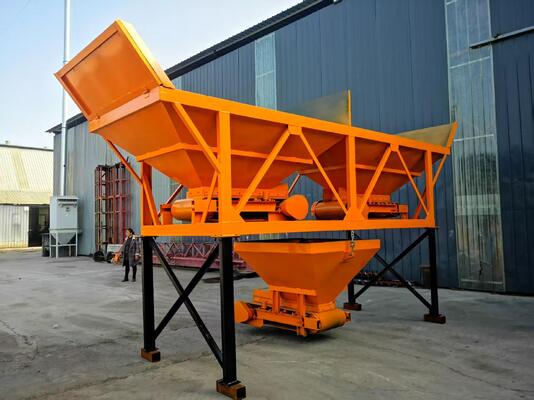

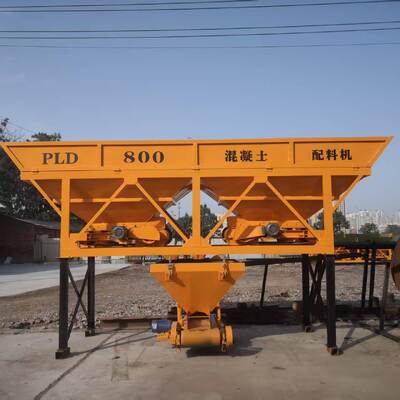

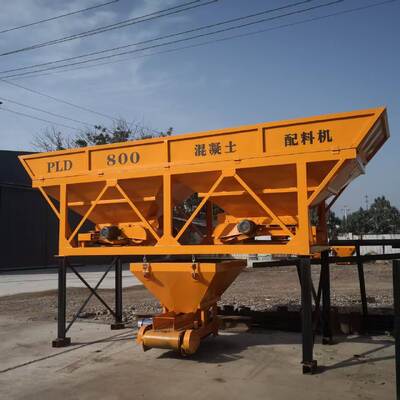

PLD800 Two Warehouse Batching Machine Product Introduction

The PLD800 two-bed loader is a fully automatic aggregate preparation equipment designed for small and medium-sized concrete mixing operations. It is a core front-end support equipment for concrete mix production lines, mainly fits perfectly with the JS500 concrete mixer, and can accurately complete the automatic matching of sand and stone aggregates. The metering and transmission operation is widely used in small and medium-sized construction sites, road and bridge construction, concrete prefabric factories, municipal engineering and other scenarios. With accurate ingredients performance, stable operation efficiency and convenient operation mode, it is the ideal choice for small and medium sized concrete production scenarios

I. Core performance advantages

(1) Accurate measurement and easy matching

The device uses a high-precision electronic weighing system, coupled with a high sensitivity weighing sensor and a professional weight control machine, enabling the sensor to directly weigh and measure materials gaps, and can automatically determine and correct material gap errors.The accuracy of artificial ingredients is completely eliminated, the accuracy is stablely controlled within * * ± 2% * *, strictly safeguarding the accuracies of concrete matching, improving the quality of finished concrete from the source, and meeting the strict requirements of concrete strength and matching for various projects.

(2) Efficient operation and stable production capacity

The nominal volume of the equipment is 800L, the theoretical productivity can reach 40-48 m3 / h, the dual storage tank is independent, the single storage tank capacity can reach 3m3, and a single feeding can meet multiple batch stirring requirements without frequent feeding. Equipped with special conveyor belts and highly efficient drive motors, material conveyance is smooth and smooth. The unloading speed is fast, effectively shortens the preparation cycle, and the fully automatic control system can achieve continuous uninterrupted preparation work, greatly improve the overall concrete production efficiency, and easily cope with the continuous construction requirements of small and medium-sized projects.

(3) Intelligent control, easy to learn

Adopt microcomputer intelligent control system, collocation LED digital double display window, real-time visual display single material weight, The accumulated ingredients weight and other data, the operating interface is simple and clear, supports the storage and rapid retrieval of 10 different concrete formulations, can modify the ratio parameters at any time according to construction requirements, and starts the fully automatic ingredients process with one click without the need for a professional technician to guard. At the same time, it is equipped with a wired remote control operating handle, which can remotely complete equipment start-off, recipe switching and other operations, further reducing the difficulty of operation, saving labor costs, and even beginners can quickly get started.

II. Structural design: strong and durable, practical and convenient

(1) stable rack, pressure resistant and durable

The frame of the entire machine is wrought with thick high-quality trough steel, After strict stress elimination treatment, the structure is compact, the stiffness is extremely strong, and the overall structure is strong and stable. During long-term full load operation, there will be no deformation or shaking problems, and it adapts to the complex and harsh working environment of the construction site. It is resistant to shock and wear, and the service life far exceeds that of similar products.

(2) Double warehouse design and reasonable zoning

Adopting a separate two warehouse division design, the inner wall of the storage warehouse is smooth and smooth, and it is equipped with anti-clogging and anti-sticky structure to avoid sand and stone material accumulation and crushing, ensuring smooth loading. A widening feeding mouth is provided above the warehouse, and the feeding width is suitable for 50 loaders, which facilitates the rapid feeding of loaders and reduces the feeding wait time. At the same time, the warehouse is equipped with a dust shield, which effectively reduces dust flying and optimizes the operation site environment.

(iii) High quality delivery, stable and reliable

The transmission system uses special belts without joints and rings. The belts are resistant to wear, tensile, and not easily run off, and have a long service life. The belt is paired with anti-running off, sliding, and blockage alarm detection devices to monitor the transmission status in real time, and automatically alarm if there are abnormalities, so as to avoid equipment failures affecting the construction progress. The belt delivery is smooth and unimpacted, effectively protecting material integrity, preventing fracture of bones and ensuring the quality of ingredients.

(4) Optimization of details and easy maintenance

The overall layout of the equipment is reasonable, the layout of key components is open, and daily repair and maintenance is easy and easy. Before the factory, the scale is accurately calibrated by weight to ensure that the measurement system is accurate and error-free. The motors, sensors and other core components are used by high-quality brand products, with stable performance and low failure rate, reducing late-stage maintenance costs and downtime, and providing reliable guarantee for continuous construction.

III. Core technical parameters

Project parameters
Model PLD800 (Two Bunches)
800 L nominal volume
Storage hopper volume 2 × 3 m3
Theoretical productivity ≤ 48 m3 / h
Maximum weighing 1000-2000 kg
Number of ingredients 2 types (sand, stone)
Ingredients accuracy ± 2%
Method of measurement Electronic cumulative measurement
Form of ingredients Electric belt removal ingredients
Total power 6.6kw
The total weight of the machine is about 2100 kg
External dimensions (L × W × H) 6280 × 1890 × 2900 mm
Feeding height 2780 mm

IV. Applicable scenarios

1. Construction: concrete on-site stirring for construction of small and medium-sized civil buildings and industrial plants, suitable for various brick-and-frame structural projects;
2. Road bridges: concrete ingredients for construction of rural roads, municipal roads, and small bridges, meeting the production needs of road surface and surface concrete;
3. Prefabricated components: precise ingredients for the production of concrete hollow bricks, road stones, prefabricated flooring and other components to ensure uniform quality of the components;
4. Municipal projects: small municipal projects such as community renovation, pipe network construction, and landscaping, flexible to meet the needs of scattered and multi-batch construction;
5. Stirring support: As the front-end ingredients equipment for small and medium-sized concrete stirring stations, it is paired with a mixer to form a semi-automatic / fully automatic stirring production line to achieve large-scale concrete production.

V. Core value of products

The PLD800 two-bed loader takes care of accuracy, high efficiency, durability and economy, which solves the pain points of low artificial ingredients efficiency and large error, while avoiding the high cost and large area of large loaders, perfectly meeting the actual needs of small and medium-sized construction scenarios. The equipment is simple to operate, convenient to maintain, and stable to operate. It can effectively improve the quality of concrete production, and greatly save manpower and material costs, and shorten the construction cycle. It is the core equipment for standardizing and automating concrete ingredients in various small and medium-sized projects.

Choose PLD800 two-warehouse batching machine, is to choose efficient, accurate, reliable concrete batching solution, for your construction escort!
